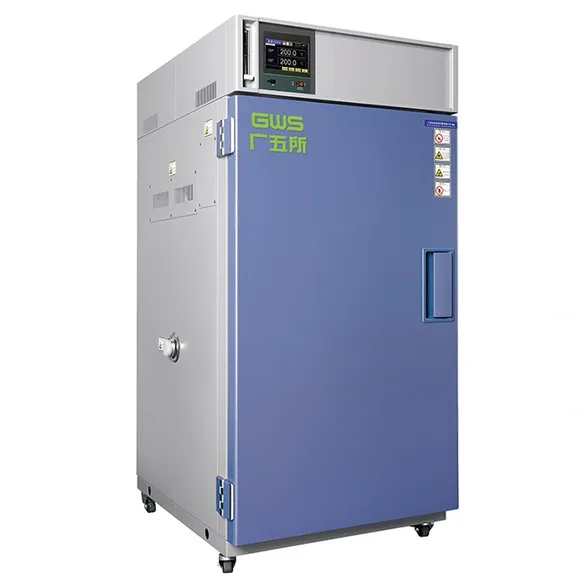

PVT Series Vertical Temperature Test Chamber

Space-saving upright test chamber with large processing capacity for high temperature testing applications

PVT Series Vertical Temperature Test Chamber

PVT Series Vertical Temperature Test Chamber

Space-saving upright test chamber with large processing capacity for high temperature testing applications

This upright chamber saves floor space while offering large capacity for high-temperature tests up to 200 °C. It features dual side cable ports, a precise touchscreen controller with fixed and programmable modes, vertical airflow for uniform heating, and durable insulation to maintain stable conditions. Ideal for evaluating electronics, coatings, and materials under consistent thermal stress.

Our temperature and humidity test chamber models comply with the following standards:
  • EN IEC 61000-6-2:2019
  • EN IEC 61000-6-4:2019
  • EN 61010-1:2010+A1:2019
Request a Quote
Standard Configuration
  • Standard Configuration
    3 sets of specimen racks
  • Standard Configuration
    2 cable ports (Ø50 mm)
  • Standard Configuration
    1 vent port
  • Standard Configuration
    1 terminal block for controlling specimen power supply
Features
  • Space-saving vertical design with cable ports on both sides for easy connections
  • Touchscreen controller offering precise temperature control and flexible operation modes
  • Top and bottom airflow system to keep heat distribution even
  • Well-insulated chamber walls that help maintain stable internal temperatures
  • Suitable for testing needs up to 200 °C across electronics, coatings, and other materials
Technical Parameters
Model PV221T PV331T
Chamber volume (L) 324 768
Performance Temperature range (Ambient temperature +20)℃～200℃
Temperature fluctuation ≤100℃: 0.4℃
≤200℃: 0.8℃
Temperature deviation ±2.0℃
Temperature rise rate (Ambient temperature +20)℃→200℃: ≤40min (Ambient temperature +20)℃→200℃: ≤60min
Internal dimensions (mm) W610×H900×D600 W830×H1200×D800
External dimensions (without protrusion) (mm) W770×H1500×D925 W1030×H1800×D1145
Power supply 220V (single phase + protective grounding wire) 380V (three phase four wire + protective grounding wire)

Performance measured at +25 °C ambient temperature, with the chamber empty and no air exchange during operation.

High-temperature chambers can be used to test a wide range of materials and products, including plastics, rubber, electronic components, food items, building materials, and metals. These tests help evaluate how heat affects the reliability and performance of each sample.

Standard models operate from ambient temperature plus 20 °C up to 200 °C or 300 °C. For applications that require higher temperatures, we offer specialized chambers that reach up to 500 °C. You can choose the model that best fits your testing requirements.

Each chamber includes leakage protection, multiple overtemperature safeguards, and pressure relief devices. SPH models feature a safety vent on the top of the chamber that releases pressure in case of a sudden rise, reducing risks to operators. All systems comply with CE safety standards.
