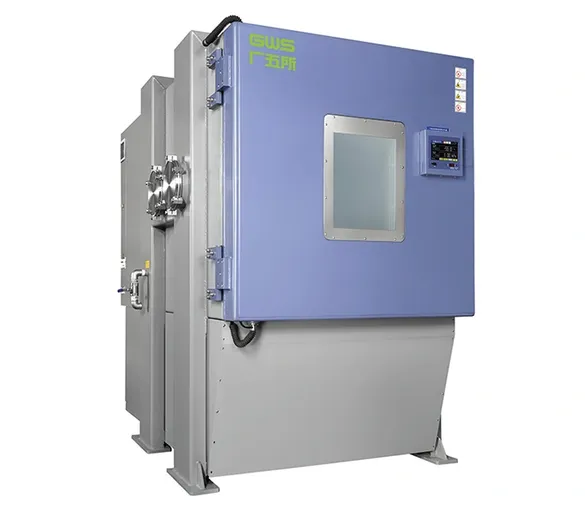

Altitude Test Chamber

Environmental test chamber for simulating high altitude environments combined with temperature and humidity control for simultaneous environmental testing

Altitude Test Chamber
  • Altitude Test Chamber
  • Altitude Test Chamber
  • Altitude Test Chamber

    • Altitude Test Chamber

    Environmental test chamber for simulating high altitude environments combined with temperature and humidity control for simultaneous environmental testing

    Combining altitude simulation with precise temperature and humidity control, these chambers offer a way to recreate demanding environmental conditions in one space. They are used to study how products and materials react to pressure drops and climate extremes that can occur during transport, storage, or operation at high elevations.

    Our temperature and humidity test chamber models comply with the following standards:
    • EN IEC 61000-6-2:2019
    • EN IEC 61000-6-4:2019
    • EN 61010-1:2010+A1:2019
    Request a Quote
    Standard Configuration
    • Standard Configuration

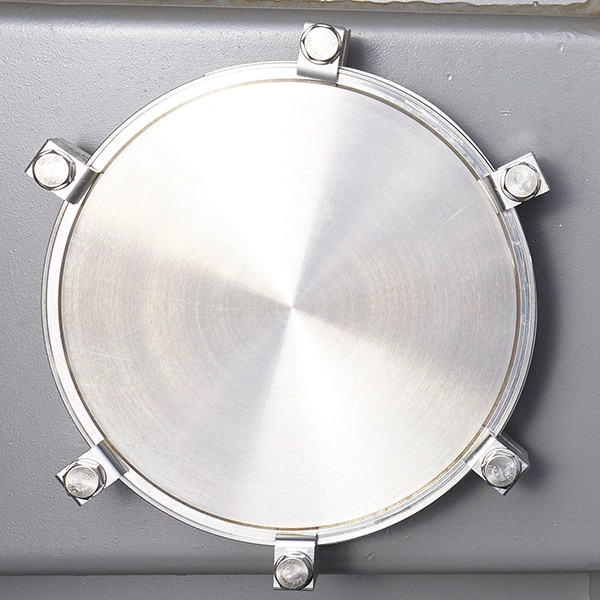

      2 cable ports (Ø200 mm), supplied with blank flange plates
    • Standard Configuration

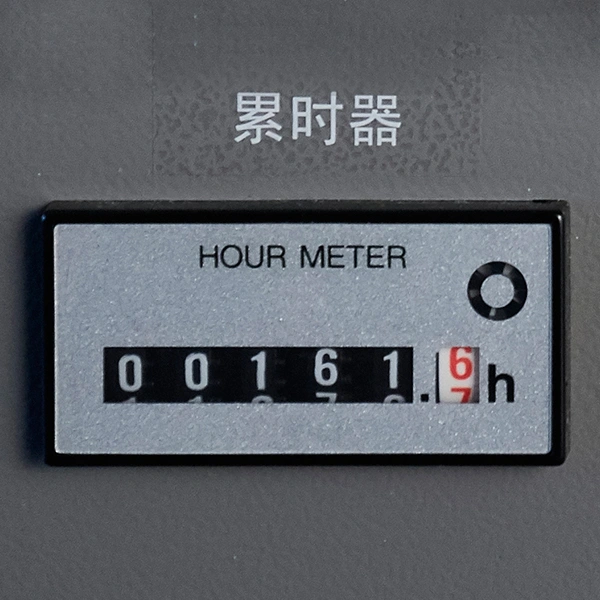

      Hour meter
    • Standard Configuration

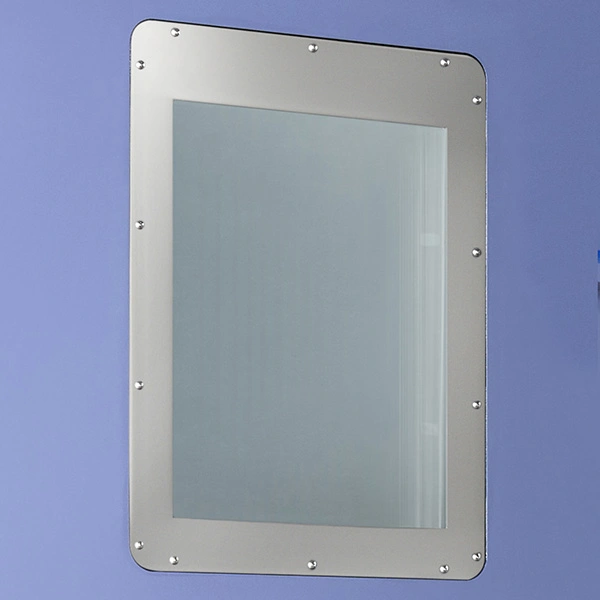

      1 observation window (multi-layer heated insulated glass)
    • Standard Configuration

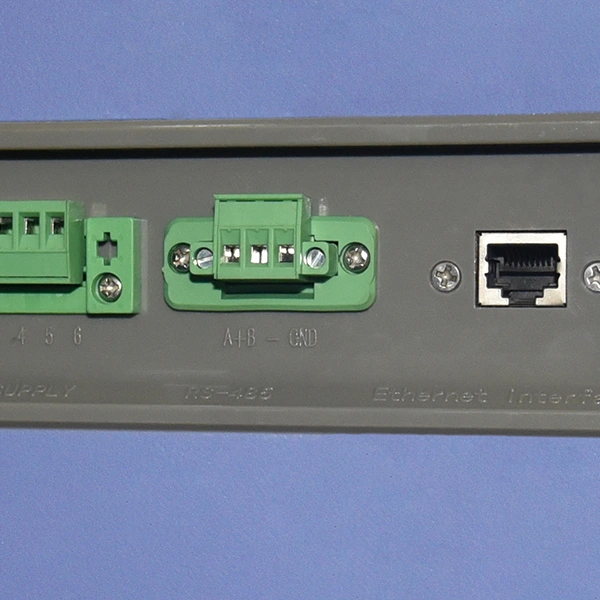

      1 specimen power supply terminal
      1 RS-485 communication port
      1 RJ-45 Ethernet port
    • Standard Configuration

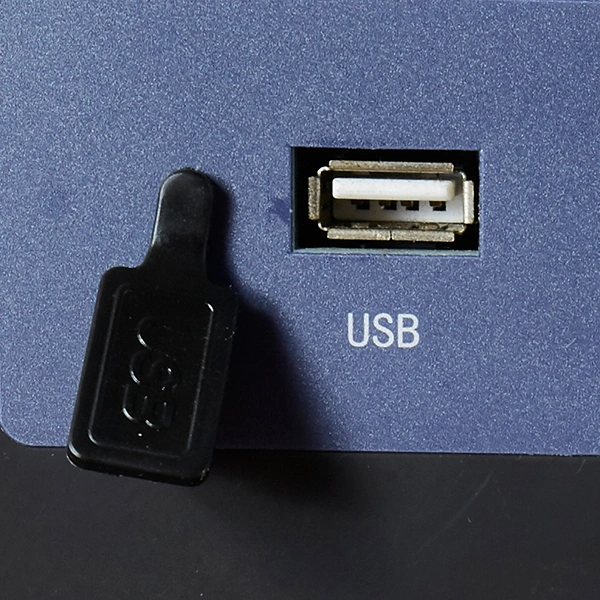

      USB port
    • Standard Configuration

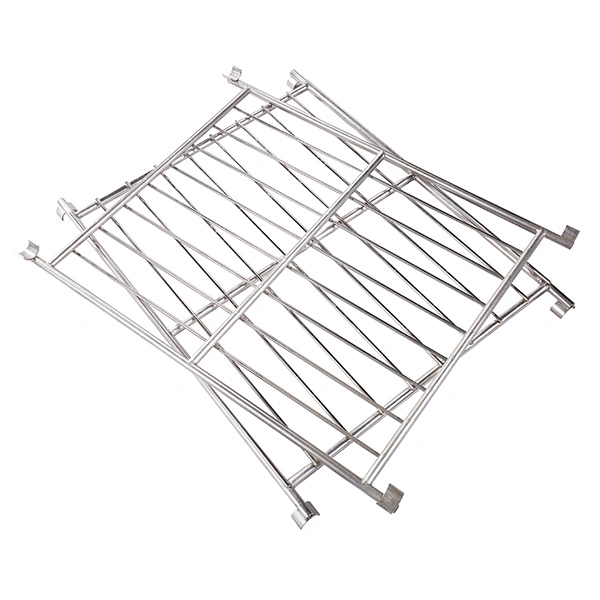

      2 sample shelves
    • Standard Configuration

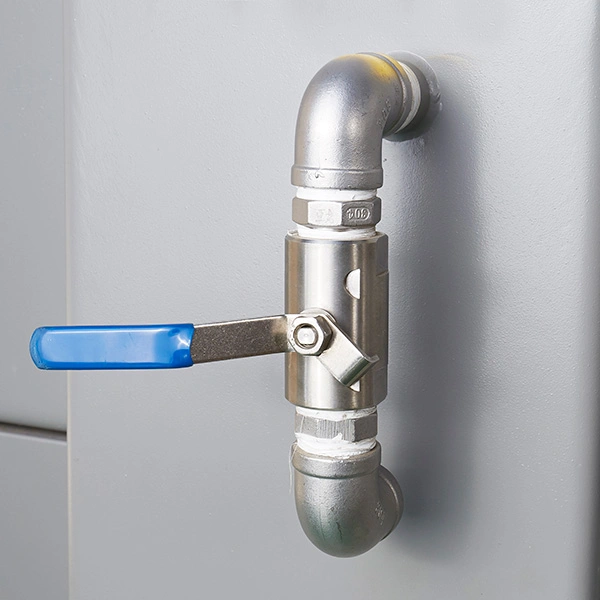

      Manual ball valve (DN25)
    Features
    • Simultaneously replicates changes in temperature, humidity, and air pressure to create complex test scenarios
    • Enables rapid decompression from 75.5 kPa down to 18.8 kPa in less than 15 seconds, including an explosive decompression mode for more rigorous safety testing
    Common Test Applications
    • High-temperature exposure
    • Low-temperature performance checks
    • Constant temperature and humidity simulations
    • Alternating temperature cycles
    • Combined temperature and humidity testing
    • Moisture testing
    • Low-pressure evaluations and integrated condition tests
    Technical Parameters
    Model VH0400 VH0700 VH1000 VH2400 VW/T0470W VW/T0770W VW/T1070W VW/T2470W VW/T5170W VW/T8070W VW/T12070W
    Chamber volume (m³) 0.36 0.72 1.0 2.37 0.36 0.72 1.0 2.37 5.1 8.0 12.0
    Performance Temperature range (Ambient temperature +20)℃～+160℃ -70℃～+160℃
    Pressure Range Atmospheric pressure～0.5kPa (under the condition of dry test area)
    Humidity range —— (25~95)%RH/(20~75℃),air pressure ≥54KPa,when there is no active humidity and heat load
    Temperature fluctuation 1.0℃ (under atmospheric pressure,no-load) (conform to GB/T5170.2-2008 standard)
    Temperature deviation ±2.0℃ (under atmospheric pressure,no-load)
    Temperature uniformity 2.0℃ (under atmospheric pressure,no-load)
    Humidity deviation (under atmospheric pressure,no-load) —— ±3.0%RH (>75%RH) ±5.0%RH (≤75%RH)
    Pressure deviation ±1kPa (pressure ≥20kPa) ±5% (perssure 2～20kPa) ±0.1kPa (pressure ≤2kPa)
    Temperature rise rate (under atmospheric pressure,no-load) 25℃ (ambient temperature)→+160℃
    ≤60min
    Temperature drop rate (under atmospheric pressure,no-load) —— +25℃→-65℃
    —— ≤65min ≤70min ≤90min ≤80min ≤90min
    Pressure drop rate (no-load,dry test area) Atmospheric pressure →1kPa
    ≤25min ≤30min ≤45min ≤25min ≤30min ≤45 min
    Fast pressure drop (optional) Within 15sec,from 75.5kPa to 18.8kPa
    Explosive decompression test function (optional) Within 0.1sec,from 75.5kPa to 18.8kPa
    Internal dimensions (mm) W 600 800 1000 1300 600 800 1000 1300 1600 2000 2000
    H 750 900 1000 1300 750 900 1000 1300 2000 2000 2000
    D 800 1000 1000 1400 800 1000 1000 1400 1600 2000 3000
    External dimensions (without protrusion) (mm) W 1130 1290 1490 1790 1130 1290 1490 1790 2050 2450 2450
    H 2205 2350 2450 2750 2205 2350 2450 2750 3005 3005 3005
    D 2370 2510 2510 2910 2370 2510 2510 2910 4850 5250 6250
    Power supply 380V (three phase four wire + protective grounding wire)
    Condensing method Air-cooled Water-cooled

    Performance data measured with the chamber empty, under ambient conditions of +5 °C to +35 °C, relative humidity up to 85%, and cooling water temperature not exceeding +28 °C.

    Altitude test chambers are widely used across sectors such as electronics, automotive, aerospace, and pharmaceuticals. These chambers help evaluate how materials and components perform when exposed to combined environmental stresses like low air pressure, extreme temperatures, and controlled humidity. They are essential for applications requiring validation under high-altitude or transportation conditions.

    Unlike conventional temperature and humidity chambers, an altitude test chamber can also simulate reduced atmospheric pressure. This capability allows it to recreate high-altitude environments, or the low-pressure conditions encountered during air transport. Combining pressure, temperature, and humidity control in a single system provides more comprehensive testing for product reliability and safety.
