Question

What is vibration testing?

Why is vibration testing important?

How long does vibration testing take?

Accepted Answer

Vibration testing involves applying controlled and measurable vibrational forces to a test specimen. The main purpose is to evaluate how these forces impact the structural integrity and performance of the product. This process helps identify hidden weaknesses or potential failure points that could emerge under daily use or extreme conditions.

Accepted Answer

Vibration testing is essential across industries such as aerospace, automotive, and electronics, where components must reliably withstand environmental stress throughout their service life. By simulating real-world vibrations, these tests help ensure that:

Products remain robust and durable.
Safety and performance standards are consistently met or exceeded.
Costly recalls or repairs due to vibration-induced failures are avoided.

Accepted Answer

The duration varies widely depending on the product, the type of test, and the standards being applied. Some tests can be completed in a few hours, while others require extended cycles over days or weeks to thoroughly simulate long-term use.

Low Pressure Slip Table
Thickness (mm)	Frequency (Hz)	TS1-150 TS1.5-150 TS2-150 TS3-150		TS6-230 TS10-240 TS10D-240		TS20-320		TS20-445		TS20LS3-340 TS25WLS3-340 TS30-370 TS35WLS3-340 TS40-370		TS30LS4-445 TS40LS4-445 TS50-445 TS50W-445 TS60-445 TS60W-445 TS70W-445 TS80W-445		TS50LS3-445 TS50LS4-445 TS50WLS3-445 TS50WLS4-445 TS60LS3-445 TS60LS4-445 TS60WLS3-445 TS60WLS4-445 TS70WLS3-445 TS70WLS4-445 TS80WLS3-445 TS80WLS4-445		TS65LS3-480		TS70LS3-550 TS100-550 TS100LS3-550 TS120-550 TS120LS3-550
Effective Mass (Al/kg)	Effective Mass (Mg/kg)
Model	Dimension
LP0303	300×300	30	2000	—		—		—		—		—		—		—		——	——
LP0303	300×300	12	9	—		—		—		—		—		—		—		——	——
LP0404	400×400	30	2000	30	2000	—		—		—		—		—		—		——	——
LP0404	400×400	18	13	20	15	—		—		—		—		—		—		——	——
LP0505	500×500	30	2000	30	2000	40	2000	40	2000	40	2000	45	2000	45	2000	45	2000	——	——
LP0505	500×500	26	18	28	21	38	28	52	39	42	32	58	43	63	48	62	48	——	——
LP0606	600×600	40	2000	40	2000	40	2000	40	2000	40	2000	45	2000	45	2000	45	2000	——	——
LP0606	600×600	46	32	49	34	51	36	65	47	56	40	74	54	80	60	78	60	——	——
LP0707	700×700	45	2000	45	2000	45	2000	45	2000	45	2000	45	2000	45	2000	45	2000	——	——
LP0707	700×700	70	47	72	50	74	52	94	68	80	58	93	69	101	74	98	74	——	——
LP0808	800×800	——		45	2000	45	2000	45	2000	45	2000	45	2000	45	2000	45	2000	50	2000
LP0808	800×800	——		91	63	96	66	115	82	100	70	114	82	123	88	120	108	143	108
LP0909	900×900	——		45	2000	45	2000	45	2000	45	2000	50	2000	50	2000	50	2000	50	2000
LP0909	900×900	——		112	78	118	81	127	90	122	86	140	98	148	105	145	103	169	124
LP1010	1000×1000	——		45	2000	45	2000	45	2000	45	2000	50	2000	50	2000	50	2000	50	2000
LP1010	1000×1000	——		136	93	142	98	152	106	146	102	166	116	176	124	171	122	198	143
LP1111	1100×1100	——		45	2000	45	2000	45	2000	45	2000	50	2000	50	2000	50	2000	50	2000
LP1111	1100×1100	——		168	113	170	115	178	124	174	120	195	136	205	144	200	141	228	164
LP1212	1200×1200	——		45	2000	45	2000	45	2000	45	2000	50	2000	50	2000	50	2000	50	2000
LP1212	1200×1200	——		196	134	198	135	207	144	202	140	228	158	239	166	233	164	263	186
LP1313	1300×1300	——		——		——				——		——				——		50	2000
LP1313	1300×1300	——		——		——				——		——				——		298	212
LP1414	1400×1400	——		——		——				——		——				——		50	2000
LP1414	1400×1400	——		——		——				——		——				——		338	238
LP1515	1500×1500	——		——		——				——		——				——		50	2000
LP1515	1500×1500	——		——		——				——		——				——		380	265
LP2020	2000×2000	——		——		——				——		——				——		60	2000
LP2020	2000×2000	——		——		——				——		——				——		780	532

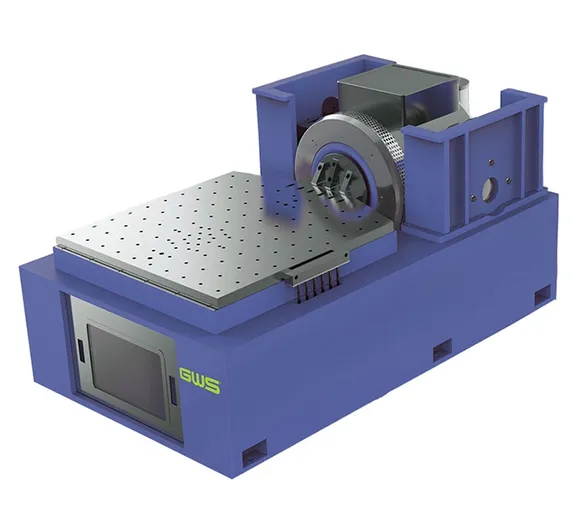

Low Pressure Slip Table

Vibration testing table system for horizontal vibration testing

Low Pressure Slip Table

Vibration testing table system for horizontal vibration testing
