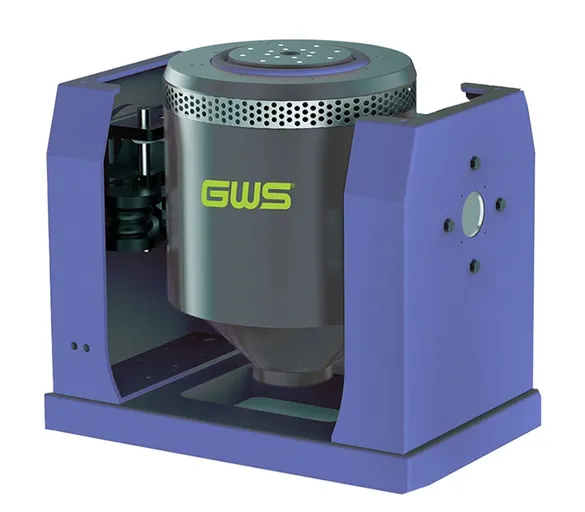

Air-Cooled Vibration Test System

Electrodynamic vibration shaker for testing the behaviour and reliability of products under simulated vibration environments

Air-Cooled Vibration Test System
  • Air-Cooled Vibration Test System
  • Air-Cooled Vibration Test System
  • Air-Cooled Vibration Test System

    • Air-Cooled Vibration Test System

    Electrodynamic vibration shaker for testing the behaviour and reliability of products under simulated vibration environments

    Our air-cooled vibration systems are available with excitation forces ranging from 1 kN to 70 kN. They operate across a wide frequency spectrum and are engineered to maintain stable, repeatable performance even during extended test cycles. Thanks to their intuitive controls and high reliability, these shakers are frequently used for testing electronic components, automotive parts, and medical devices of small to medium size.

    Standard Compliance
    • Our air-cooled vibration test systems are manufactured in compliance with JJG948/2018, JJG1000-2005, GB/T 13310-2007.
    • Performance specifications align with ISO 5344, IEC 60068-2-6, MIL-STD-810 requirements.
    • Configurations and features can be customized to match specific test needs.
    Request a Quote
    Optional Configurations
    Technical Parameters
    System Model TS1-150 TS1.5-150 TS2-150 TS3-150 TS6-230 TS10-240 TS10D-240 TS20-320 TS20-445 TS20LS3-340 TS30-370
    Sine/Random (kN) 1 1.5 2 3 6 10 10 20 20 20 30
    Shock force (kN) 2 3 4 6 12 20 20 40/60 40/60 40/60 60/90
    Frequency range (Hz) 5-4,500 5-4,500 5-4,500 5-4,000 5-3,500 5-3,000 5-4,500 5-3,000 5-2,800 5-3,000 5-2,800
    Max. acceleration (m/s²) 500 750 1,000 1,000 1,000 1,000 1,000 1,000 700 800 1,000
    Max. velocity (m/s) 2 2 2 2 1.8 1.8 1.8 2 2 2 2
    Max. displacement (mm) 25 25 25 25 51 51 51 51 51 76 51
    Max. load (kg) 70 70 70 120 300 300 300 300 300 300 500
    Armature mass (kg) 2 2 2 3 6 10 10 20 28 25 30
    Armature diameter (mm) 150 150 150 150 230 240 240 320 445 340 370
    Body suspension natural frequency (Hz) 3 3 3 3 3 2.5 2.5 2.5 2.5 2.5 2.5
    Armature inserts (standard) 13×M8 13×M8 13×M8 13×M8 17×M8 17×M10 17×M10 17×M10 17×M10 21×M10 17×M10
    Stray flux density ﹤3 mT (30 Gs) ﹤ 3 mT (30 Gs) ﹤3 mT (30 Gs) ﹤ 3 mT (30 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 4 mT (40 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs)
    Fundamental resonance frequency (Hz) 3,400 (nom.) ±5% 3,400 (nom.) ±5% 3,400 (nom.) ±5% 2,900 (nom.) ±5% 2,800 (nom.) ±5% 2,400 (nom.) ±5% 3,200 (nom.) ±5% 2,600 (nom.) ±5% 2,600 (nom.) ±5% 2,600 (nom.) ±5% 2,400 (nom.) ±5%
    Weight (kg) 420 420 420 510 615 930 950 1750 1750 1750 2550
    Dimensions (mm) 745×560×658 745×560×658 745×560×658 805×560×663 875×560×727 966×640×786 1016×640×843 1136×710×1052 1136×710×1052 1136×710×1066 1230×790×1155
    Power Amplifier Model PWA1 PWA1.5 PWA2 PWA3 PWA6 PWA10 PWA10 PWA20 PWA20 PWA20 PWA30
    Power (kVA) 1 1.5 2 3 6 10 10 20 20 20 30
    Max. output voltage (V) 50 60 60 60 90 120 120 120 120 120 120
    Max. output current (A) 20 25 35 50 70 110 110 230 230 230 300
    Power requirement (kVA) 4 4.5 5.5 6.5 16 21 21 44 44 44 54
    Weight (kg) 285 285 285 285 320 320 320 330 330 330 585
    Dimensions (mm) 600×980×1150 600×980×1150 600×980×1150 600×980×1150 600×980×1150 600×980×1150 600×980×1150 600×910×1800 z 600×910×1800 600×910×1800
    Blower Model CD200 CD200 CD200 CD200 CD1000 CD1000 CD1000 CD3000 CD3000 CD3000 CD3000
    Cooling method Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling
    Power (kW) 0.75 0.75 0.75 0.75 4 4 4 7.5 7.5 7.5 7.5
    Air flow (m³/s) 0.1 0.1 0.1 0.1 0.33 0.33 0.33 0.46 0.46 0.46 0.46
    Air pressure (kPa) 1 1 1 1 3.5 3.5 3.5 8.8 8.8 8.8 8.8
    Weight (kg) 25 25 25 25 120 120 120 235 235 235 235
    Dimensions (mm) 496×382×1005 496×382×1005 496×382×1005 496×382×1005 792×557×1260 792×557×1260 792×557×1260 915×721×1445 915×721×1445 915×721×1445 915×721×1445
    System Model TS30LS4-445 TS40-370 TS40LS4-445 TS50-445 TS50LS3-445 TS50LS4-445 TS60-445 TS60LS3-445 TS60LS4-445 TS65LS3-480 TS70LS3-550
    Sine/Random (kN) 30 40 40 50 50 50 60 60 60 65 70
    Shock force (kN) 60/90 80/120 80/120 100/150 100/150 100/150 120/180 120/180 120/180 130/195 140/210
    Frequency range (Hz) 5-2,600 5-2,800 5-2,600 5-2,600 5-2,600 5-2,500 5-2,600 5-2,600 5-2,500 5-2,700 5-2,500
    Max. acceleration (m/s²) 750 1,300 900 1,000 900 850 1,000 1,000 1,000 920 850
    Max. velocity (m/s) 1.8 2 1.8 2 2 2 2 2 2 2 2
    Max. displacement (mm) 100 51 100 51 76 100 51 76 100 76 76
    Max. load (kg) 500 500 500 800 800 800 800 800 800 1,000 1,000
    Armature mass (kg) 40 31 45 50 55 59 60 55 60 70 82
    Armature diameter (mm) 445 370 445 445 445 445 445 445 445 480 550
    Body suspension natural frequency (Hz) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
    Armature inserts (standard) 17×M10 17×M10 17×M10 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 33×M12
    Stray flux density ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs)
    Fundamental resonance frequency (Hz) 2,400 (nom.) ±5% 2,400 (nom.) ±5% 2,400 (nom.) ±5% 2,400 (nom.) ±5% 2,300 (nom.) ±5% 2200(nom.) ±5% 2,400 (nom.) ±5% 2,400 (nom.) ±5% 2,200(nom.) ±5% 2,300 (nom.) ±5% 2,300 (nom.) ±5%
    Weight (kg) 2550 2550 2550 4550 4550 4550 4550 4550 4550 4550 7300
    Dimensions (mm) 1230×790×1231 1230×790×1155 1230×790×1231 1636×1104×1274 1636×1104×1285 1636×1104×1340 1636×1104×1274 1636×1104×1285 1636×1104×1340 1636×1104×1276 1636×1104×1276
    Power Amplifier Model PWA30 PWA40 PWA40 PWA50 PWA50 PWA50 PWA60 PWA60 PWA60 PWA70 PWA70
    Power (kVA) 30 40 40 50 50 50 60 60 60 70 70
    Max. output voltage (V) 120 120 120 120 120 120 120 120 120 120 120
    Max. output current (A) 300 400 400 500 500 500 550 550 550 580 580
    Power requirement (kVA) 54 73 73 82 82 82 95 95 95 108 110
    Weight (kg) 585 700 700 780 780 780 850 850 850 900 900
    Dimensions (mm) 600×910×1800 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150 600×1000×2150
    Blower Model CD3000 CD5000 CD5000 CD5000 CD5000 CD5000 CD7000 CD7000 CD7000 CD7000 CD7000
    Cooling method Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling
    Power (kW) 7.5 15 15 15 15 15 22 22 22 22 22
    Air flow (m³/s) 0.46 1.1 1.1 1.1 1.1 1.1 1.6 1.6 1.6 1.6 1.6
    Air pressure (kPa) 8.8 7.7 7.7 7.7 7.7 7.7 7.5 7.5 7.5 7.5 7.5
    Weight (kg) 235 285 285 285 285 285 390 390 390 390 390
    Dimensions (mm) 915×721×1445 1163×874×1882 1163×874×1882 1163×874×1882 1163×874×1882 1163×874×1882 1163×959×1882 1163×959×1882 1163×959×1882 1163×959×1882 1163×959×1882

    Vibration testing involves applying controlled and measurable vibrational forces to a test specimen. The main purpose is to evaluate how these forces impact the structural integrity and performance of the product. This process helps identify hidden weaknesses or potential failure points that could emerge under daily use or extreme conditions.

    Vibration testing is essential across industries such as aerospace, automotive, and electronics, where components must reliably withstand environmental stress throughout their service life. By simulating real-world vibrations, these tests help ensure that:

    • Products remain robust and durable.
    • Safety and performance standards are consistently met or exceeded.
    • Costly recalls or repairs due to vibration-induced failures are avoided.

    The duration varies widely depending on the product, the type of test, and the standards being applied. Some tests can be completed in a few hours, while others require extended cycles over days or weeks to thoroughly simulate long-term use.

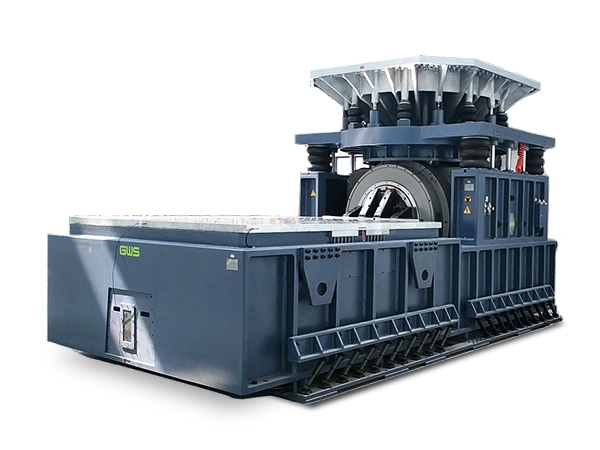

    Related Vibration Test System
