Water-Cooled Vibration Test System

Electrodynamic vibration shaker for vibration testing of medium to large-sized specimens

Water-Cooled Vibration Test System
  • Water-Cooled Vibration Test System
  • Water-Cooled Vibration Test System
  • Water-Cooled Vibration Test System

    • Water-Cooled Vibration Test System

    Electrodynamic vibration shaker for vibration testing of medium to large-sized specimens

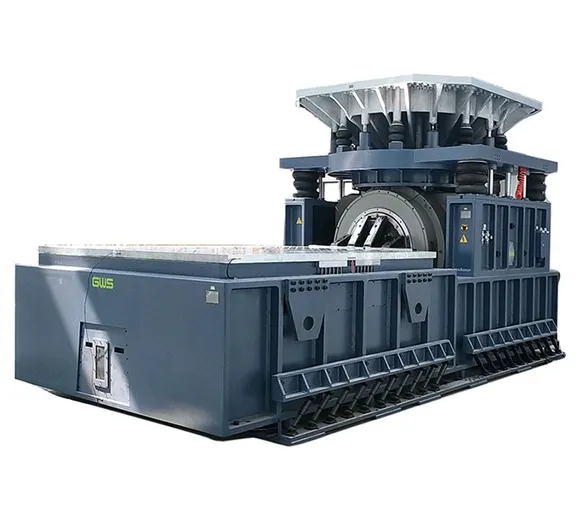

    These water-cooled vibration systems deliver high force output ranging from 80 kN to 400 kN, ideal for testing larger or heavier products. They combine strong thrust with efficient cooling to handle demanding conditions and maintain stable operation. With robust load capacity and precise guidance, they are especially used in aerospace, defense, marine, and rail industries to verify the durability and reliability of critical equipment. Our water-cooled vibration systems are built to meet both Chinese and international testing standards and can be customized to match specific requirements.

    Standard Compliance
    • The water-cooled vibration test systems we offer are manufactured in compliance with JJG948/2018, JJG1000-2005, GB/T 13310-2007.
    • Performance specifications align with ISO 5344, IEC 60068-2-6, MIL-STD-810 requirements.
    • Configurations and features can be customized to match specific test needs.
    Request a Quote
    Optional Configurations
    Technical Parameters
    System Model TS25WLS3-340 TS35WLS3-340 TS50W-445 TS50WLS3-445 TS50WLS4-445 TS60W-445 TS60WLS3-445 TS60WLS4-445 TS70W-445 TS70WLS3-445 TS70WLS4-445 TS80W-445 TS80WLS3-445 TS80WLS4-445
    Sine/Random (kN) 25 35 50 50 50 60 60 60 70 70 70 80 80 80
    Shock force (kN) 50/75 70/105 100/150 100/150 100/150 120/180 120/180 120/180 140/210 140/210 140/210 160/240 160/240 160/240
    Frequency range (Hz) 5-2,800 5-2,800 5-2,600 5-2,500 5-2,400 5-2,600 5-2,500 5-2,400 5-2,600 5-2,500 5-2,400 5-2,500 5-2,500 5-2,400
    Max. acceleration (m/s²) 1,000 1,000 1,000 1,000 900 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000
    Max. velocity (m/s) 2 2 2 2 2 2 2 2 2 2 2 2 2 2
    Max. displacement (mm) 76 76 51 76 100 51 76 100 51 76 100 51 76 100
    Max. load (kg) 300 300 800 800 800 800 800 800 800 800 800 800 800 800
    Armature mass (kg) 25 25 50 50 55 55 60 60 55 60 60 60 60 60
    Armature diameter (mm) 340 340 445 445 445 445 445 445 445 445 445 445 445 445
    Body suspension natural frequency (Hz) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
    Armature inserts (standard) 21×M10 21×M10 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12 17×M12
    Stray flux density ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs)
    Fundamental resonance frequency (Hz) 2,700 (nom.) ±5% 2,700 (nom.) ±5% 2,400 (nom.) ±5% 2,200 (nom.) ±5% 2,100(nom.) ±5% 2,350 (nom.) ±5% 2,200 (nom.) ±5% 2,100(nom.) ±5% 2,350 (nom.) ±5% 2,200 (nom.) ±5% 2,100(nom.) ±5% 2,200 (nom.) ±5% 2,200 (nom.) ±5% 2,100 (nom.) ±5%
    Weight (kg) 1750 1750 4550 4550 4550 4550 4550 4550 4550 4550 4550 4550 4550 4550
    Dimensions (mm) 1136×710×1071 1136×710×1071 1636×1104×1300 1636×1104×1300 1636×1104×1336 1636×1104×1300 1636×1104×1300 1636×1104×1336 1636×1104×1300 1636×1104×1300 1636×1104×1336 1636×1104×1300 1636×1104×1300 1636×1104×1336
    Power Amplifier Model PWA30W PWA40W PWA50W PWA50W PWA50W PWA60W PWA60W PWA60W PWA70W PWA70W PWA80W PWA80W PWA80W PWA80W
    Power (kVA) 36 48 50 50 50 60 60 60 70 70 80 80 80 80
    Max. output voltage (V) 120 120 120 120 120 120 120 120 120 120 120 120 120 120
    Max. output current (A) 400 500 550 550 550 550 550 550 600 600 900 900 900 900
    Power requirement (kVA) 86 91 91 91 91 101 101 102 111 111 142 142 142 142
    Weight (kg) 700 1000 1100 1100 1100 1150 1150 1150 1200 1200 1800 1900 1900 1900
    Dimensions (mm) 600×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1200×1000×2150 1800×1000×2150 1800×1000×2150 1800×1000×2150 1800×1000×2150
    Cooling Unit Model CW-40-1 CW-40-1 CW-40-1 CW-40-1 CW-80-1 CW-40-1 CW-40-1 CW-80-1 CW-40-1 CW-40-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1
    Cooling method Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling
    Internal circle water flow (L/min) 40 40 40 40 80 40 40 80 40 40 80 80 80 80
    Internal water pressure (Mpa) 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    External circle water flow (L/min) 100 100 100 100 160 100 100 160 100 100 160 160 160 160
    External water pressure (Mpa) 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4
    Water pump power (kW) 5/2.5 5/2.5 5/2.5 5/2.5 10/4 5/2.5 5/2.5 10/4 5/2.5 5/2.5 10/4 10/4 10/4 10/4
    Weight (kg) 250 250 250 250 320 250 250 320 250 250 320 320 320 320
    Dimensions (L×W×H) (mm) 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990
    System Model TS100-550 TS100LS3-550 TS120-550 TS120LS3-550 TS160-650 TS160LS3-650 TS180-650 TS180LS3-650 TS200-650 TS200LS3-650 TS300LS3-870 TS350LS3-870 TS400LS3-870
    Sine/Random (kN) 100 100 120 120 160 160 180 180 200 200 300/240 350/250 400/300
    Shock force (kN) 200/300 200/300 240/360 240/360 320/480 320/480 360/480 360/480 400/600 400/600 600/900 700/900 800/1000
    Frequency range (Hz) 5-2,500 5-2,500 5-2,500 5-2,500 5-2,100 5-2,100 5-2,100 5-2,100 5-2,100 5-2,100 5-1,700 5-1,700 5-1,700
    Max. acceleration (m/s²) 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000
    Max. velocity (m/s) 2 2 2 2 2 2 2 2 2 2 2 2 2
    Max. displacement (mm) 51 76 51 76 51 76 51 76 51 76 76 76 76
    Max. load (kg) 1000 1000 1000 1000 2,500 2,500 2,500 2,500 2,500 2,500 5,000 5,000 5,000
    Armature mass (kg) 90 90 90 90 150 150 150 150 150 150 300 310 330
    Armature diameter (mm) 550 550 550 550 650 650 650 650 650 650 870 870 870
    Body suspension natural frequency (Hz) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
    Armature inserts (standard) 37×M12 37×M12 37×M12 37×M12 25×M12 25×M12 25×M12 25×M12 25×M12 25×M12 33×M12 33×M12 33×M12
    Stray flux density ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs) ﹤ 1 mT (10 Gs)
    Fundamental resonance frequency (Hz) 2,150 (nom.) ±5% 2,150 (nom.) ±5% 2,150 (nom.) ±5% 2,150 (nom.) ±5% 1,800 (nom.) ±5% 1,800 (nom.) ±5% 1,700 (nom.) ±5% 1,700 (nom.) ±5% 1,700 (nom.) ±5% 1,700 (nom.) ±5% 1,600 (nom.) ±5% 1,600 (nom.) ±5% 1,600 (nom.) ±5%
    Weight (kg) 7380 7380 7380 7380 11100 11100 11100 11100 11100 11100 22950 22950 22950
    Dimensions (mm) 1780×1280×1380 1780×1280×1380 1780×1280×1380 1780×1280×1380 2100×1430×1553 2100×1430×1553 2100×1430×1553 2100×1430×1553 2100×1430×1553 2100×1430×1553 2800×2300×1943 2800×2300×1943 2800×2300×1943
    Power Amplifier Model PWA100W PWA100W PWA120W PWA120W PWA160W PWA160W PWA180W PWA180W PWA200W PWA200W PWA300W PWA350W PWA400W
    Power (kVA) 100 100 120 120 160 160 180 180 200 200 380 420 460
    Max. output voltage (V) 120 120 120 120 120 120 120 120 120 120 120 120 120
    Max. output current (A) 1100 1100 1200 1200 1800 1800 2000 2000 2200 2200 3000 3600 4000
    Power requirement (kVA) 162 162 182 182 232 232 252 252 282 282 427 507 537
    Weight (kg) 2000 2000 2000 2000 2700 2700 2700 2700 3400 3400 4200 6300 6300
    Dimensions (mm) 1800×1000×2150 1800×1000×2150 1800×1000×2150 1800×1000×2150 2400×1000×2150 2400×1000×2150 2400×1000×2150 2400×1000×2150 3000×1000×2150 3000×1000×2150 6000×1000×2150 6000×1000×2150 6000×1000×2150
    Cooling Unit Model CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-80-1 CW-120-1 CW-120-1 CW-120-1
    Cooling method Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling Water cooling
    Internal circle water flow (L/min) 80 80 80 80 80 80 80 80 80 80 120 120 120
    Internal water pressure (Mpa) 1 1 1 1 1 1 1 1 1 1 1 1 1
    External circle water flow (L/min) 160 160 160 160 160 160 160 160 160 160 320 320 320
    External water pressure (Mpa) 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4 0.25~0.4
    Water pump power (kW) 10/4 10/4 10/4 10/4 10/4 10/4 10/4 10/4 10/4 10/4 15/6.5 15/6.5 15/6.5
    Weight (kg) 320 320 320 320 320 320 320 320 320 320 350 350 350
    Dimensions (L×W×H) (mm) 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990 600×1000×1990

    Distilled water (hardness ≤30 ppm, pH 7–8, conductivity 1 μS/cm) is required for the internal circulation. City/tap water is used for the external cooling circuit.

    Vibration testing involves applying controlled and measurable vibrational forces to a test specimen. The main purpose is to evaluate how these forces impact the structural integrity and performance of the product. This process helps identify hidden weaknesses or potential failure points that could emerge under daily use or extreme conditions.

    Vibration testing is essential across industries such as aerospace, automotive, and electronics, where components must reliably withstand environmental stress throughout their service life. By simulating real-world vibrations, these tests help ensure that:

    • Products remain robust and durable.
    • Safety and performance standards are consistently met or exceeded.
    • Costly recalls or repairs due to vibration-induced failures are avoided.

    The duration varies widely depending on the product, the type of test, and the standards being applied. Some tests can be completed in a few hours, while others require extended cycles over days or weeks to thoroughly simulate long-term use.
