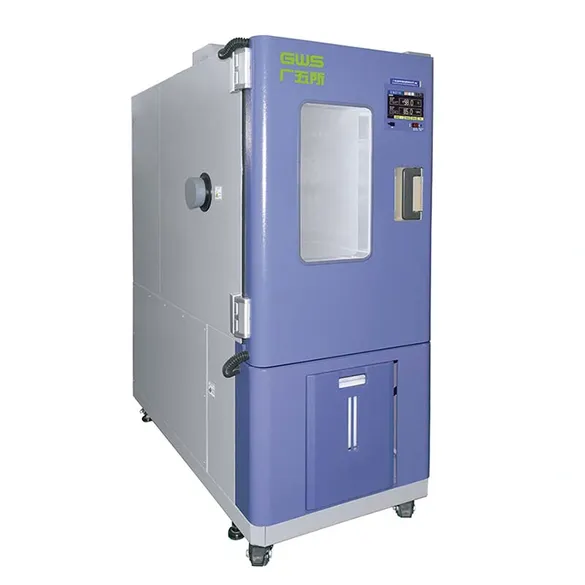

EWJ Series High/Low Temperature & Humidity Test Chamber

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

EWJ Series High/Low Temperature & Humidity Test Chamber
  • EWJ Series High/Low Temperature & Humidity Test Chamber
  • EWJ Series High/Low Temperature & Humidity Test Chamber
  • EWJ Series High/Low Temperature & Humidity Test Chamber

    • EWJ Series High/Low Temperature & Humidity Test Chamber

    Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

    This series of test chambers are designed to meet demanding testing needs while keeping operation efficient and quiet. Each test chamber benefits from a 3D-engineered design that refines the internal structure, airflow system, and cooling performance. These improvements help achieve consistent results, reduce energy consumption, and maintain low noise during operation, making them a dependable choice for temperature and humidity evaluations across different industries.

    Typical Test Applications
    • High-temperature exposure
    • Low-temperature testing
    • Constant temperature and humidity conditions
    • Alternating high and low temperatures
    • Combined temperature and humidity cycling
    Our temperature and humidity test chamber models comply with the following standards:
    • EN IEC 61000-6-2:2019
    • EN IEC 61000-6-4:2019
    • EN 61010-1:2010+A1:2019
    Request a Quote
    Standard Configuration
    • Standard Configuration
      2 cable ports (Ø100 mm)
    • Standard Configuration
      Hour meter
    • Standard Configuration
      1 observing window (insulating glass with transparent heating film)
    • Standard Configuration

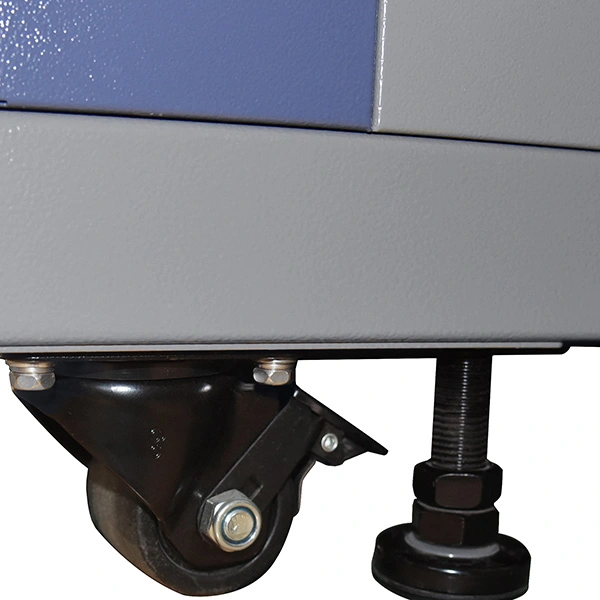

      4 caster wheels
      4 leveling feet
    • Standard Configuration
      2 sets of specimen racks
    • Standard Configuration
      1 sample power control terminal
      1 RS-485 communication port
      1 RJ-45 Ethernet port
    • Standard Configuration
      USB port
    Special Optional Functions
    Special Optional Functions

    Sterilization function: (Not available for models 01 and ET)

    Application: Allows the test chamber to be used for mold incubation tests.

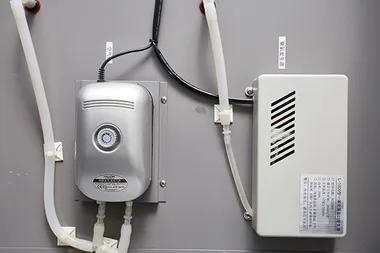

    Additional Components

    • Ventilation system
    • Ozone sterilization unit
    Features
    • Top-exhaust design with a compact, balanced layout that makes better use of space, reduces installation constraints, and limits the impact on ambient temperatures.
    • Advanced noise reduction measures keep sound levels below 57 dB(A), similar to the volume of a normal conversation.
    • Wide operating range for temperature and humidity with consistently reliable performance.
    • High-precision control: temperature fluctuation within ±0.5 °C, temperature deviation within ±1.5 °C, and humidity deviation within ±3.0% RH.
    • Incorporates industry-leading ELV electronic expansion valve technology, allowing intelligent compressor power adjustment that cuts energy consumption by about 30% compared to traditional thermal expansion valves while extending compressor lifespan.
    Construction and Components

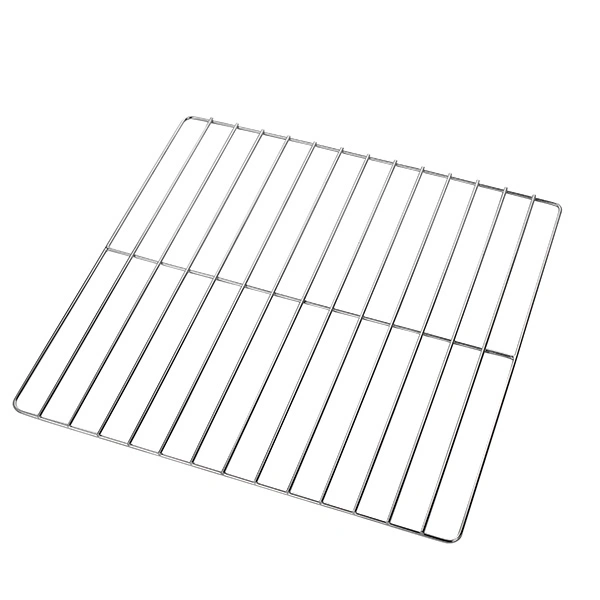

    • Stainless steel rack can be repositioned to fit samples of different heights. For heavier loads, optional reinforced shelves are available, supporting up to 80 kg per tier.
    • Side-mounted cable ports on both walls allow flexible connections for power or instrumentation from any direction. Multi-port configurations can also be customized to handle setups requiring a larger number of cables. Durable soft rubber plugs maintain a tight seal across a wide temperature range and have a long service life.

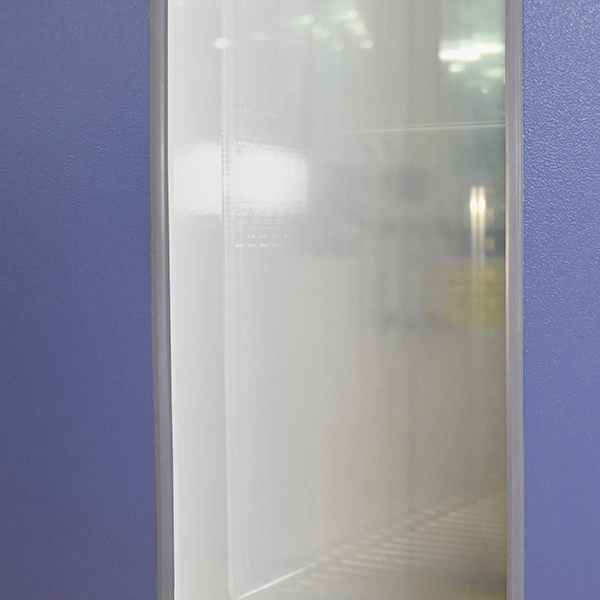

    • A large, clear observation window with multi-layer tempered glass and an anti-condensation heating element makes it easy to monitor samples throughout testing without fogging.
    • The interior is precision-welded with automated equipment and sealed using high-integrity gaskets to keep the chamber airtight.
    • For water supply, a dual tank system combines a fixed reservoir and a removable handheld tank that can be refilled during operation without interrupting the test process.
    Technical Parameters
    Model
    EW (with humidity control)
    ET (without humidity control)     		EW/T0140J EW/T0240J EW/T0440J EW/T1040J EW/T0180J EW/T0280J EW/T0480J EW/T1080J
    Chamber volume (L) 100 200 400 1000 100 200 400 1000
    Performance Temperature range -40～+150℃ (180℃) -80～+150℃ (180℃)
    Temperature fluctuation ≤0.5℃
    Temperature deviation ±1.5℃
    Temperature uniformity 1.0℃ (humidity test,humidity>90%RH)
    1.5℃ (temperature< 100℃)
    2.0℃ (no other conditions and additional glass door)
    Humidity range (only models with humidity control) (20～98%)RH / (10～98) ℃
    Relative humidity deviation (only models with humidity control) ±2.0%RH(>75%RH),±3.0%RH(≤75%RH)
    Temperature rise rate -35→+150℃ -40→+150℃ -70→+150℃
    ≤45min ≤45min ≤60min ≤50min
    Temperature drop rate +20→-35℃ +20→-40℃ +20→-70℃
    ≤45min ≤40min ≤60min ≤70min
    Internal dimensions (mm) W 500 500 600 1000 500 500 600 1000
    H 480 730 830 980 480 730 830 980
    D 500 600 800 1000 500 600 800 1000
    External dimensions (without protrusion) (mm) W 700 700 800 1200 700 700 800 1200
    H 1581 1786 1886 2036 1581 1786 1886 2036
    D 1479 1507 1707 1928 1479 1507 1707 1928
    Power supply 380V (three phase four wire + protective grounding wire)
    Condensing method Air-cooled/water-cooled

    For air-cooled models, performance specifications are based on an ambient temperature of +25 °C and relative humidity of ≤85% measured with the chamber empty. For water-cooled models, reference conditions are an ambient temperature between +15 °C and +35 °C, relative humidity of ≤85%, and cooling water temperature of ≤+28℃, also measured without test samples inside the chamber.

    Start by thinking about the materials you need to test and the exact conditions you plan to recreate. Once you share those details with us, our team can suggest a test chamber that matches your testing process and performance targets.

    Yes. To maintain stable operation, it’s important to use purified water with controlled levels of resistivity, conductivity, and total dissolved solids (TDS). This helps avoid mineral buildup and keeps humidity readings accurate.

    Of course. If you need official verification, we can arrange calibration reports issued by certified third-party labs to confirm the test chamber’s performance.

    Both cooling methods are effective, but your choice depends on your facility layout and utility connections. If you’re unsure which one fits your environment best, our specialists will walk you through the pros and cons of each option.
