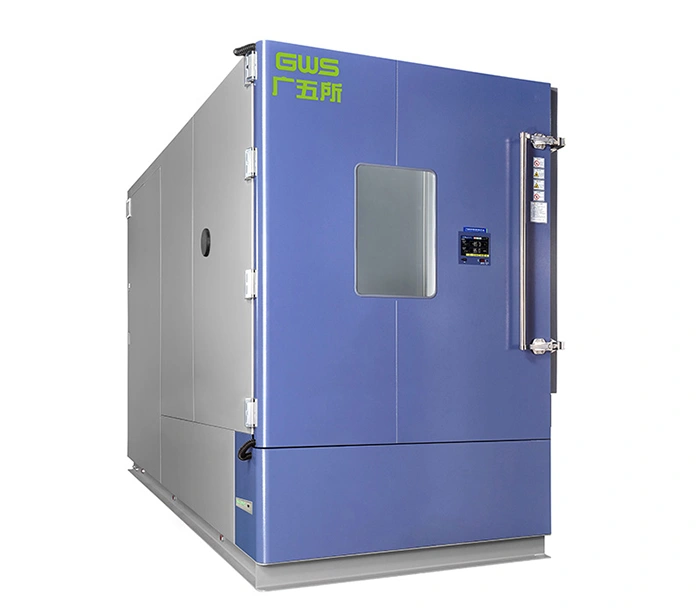

EW Series High/Low Temperature & Humidity Test Chamber

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

EW Series High/Low Temperature & Humidity Test Chamber

EW Series High/Low Temperature & Humidity Test Chamber

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

These environmental simulations chambers offer a balanced combination of reliable performance and energy efficiency. Designed for routine testing, it integrates precise temperature and humidity control with thoughtful construction details that help maintain stable conditions and minimize the impact on surrounding areas.

Typical Test Applications
  • High- and low-temperature exposure
  • Constant temperature and humidity testing
  • Alternating cycles between heat and cold
  • Combined temperature and humidity cycling
Our temperature and humidity test chamber models comply with the following standards:
  • EN IEC 61000-6-2:2019
  • EN IEC 61000-6-4:2019
  • EN 61010-1:2010+A1:2019
Request a Quote
Standard Configuration
  • Standard Configuration
    2 cable ports (Ø100 mm), one on each side, supplied with grey flexible rubber plugs and covers
  • Standard Configuration

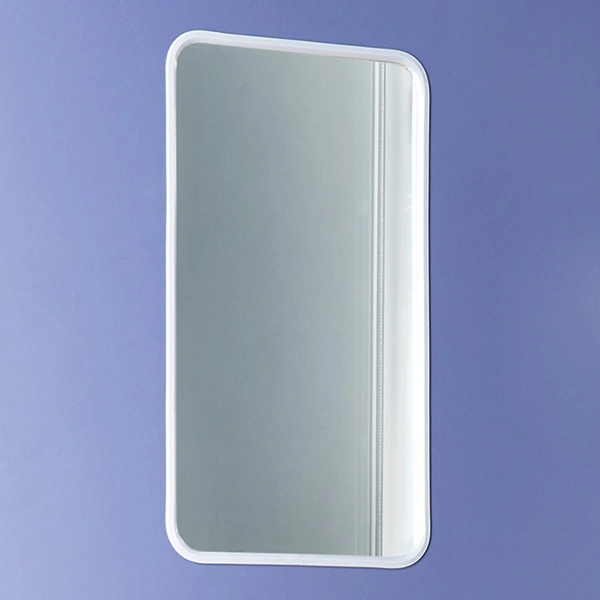

    1 observation window
  • Standard Configuration

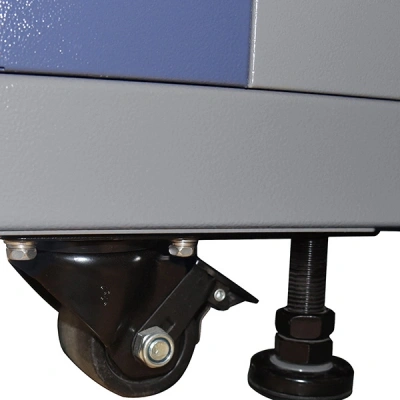

    4 caster wheels
    4 leveling feet
  • Standard Configuration
    2 sets of specimen racks
  • Standard Configuration
    1 sample power control terminal
    1 RS-485 communication port
    1 RJ-45 Ethernet port
  • Standard Configuration
    Hour meter
  • Standard Configuration
    USB port
Optional Functions
Optional Functions

Low-temperature mold testing

Uses: Enables the chamber to create controlled low-temperature and humidity conditions for mold cultivation and evaluation of material resistance to fungal growth.

Features
  • The cooling capacity is managed by an electronic expansion valve that improves energy efficiency and keeps power use in check.
  • A top exhaust system that helps limit heat buildup in the surrounding workspace.
  • Precise temperature and humidity control with minimal fluctuation and a broad operating range to suit diverse testing protocols.
  • Standard dual cable ports on each side of the chamber for easy connections when running powered tests.
Technical Parameters
Model
EW (with humidity control)
ET (without humidity control)		 EW/T2470 EBW/T1670 EBW/T2470
Chamber volume (L) 2360 1600 2400
Performance Temperature range -70～+150℃（180℃）
Temperature fluctuation ≤0.5℃
Temperature deviation ±1.5℃
Temperature uniformity ≤2℃
≤1℃ (temperature≤70℃, humidity≥90%RH)
≤1℃ (temperature>70℃, humidity≥80%RH)
Humidity range (only models with humidity control) (20～98%)RH/(20～85) ℃
Relative humidity deviation (only models with humidity control) ±3.0%RH ±3.0%RH (humidity＞75%RH)
±5.0%RH (humidity≤75%RH)
Temperature rise rate -65→+150℃
≤70min
Temperature drop rate +20→-65℃
≤80min ≤70min ≤80min
Internal dimensions (mm) W 1300 1600 2000
H 1300 1000 1200
D 1400 1000 1000
External dimensions (without protrusion) (mm) W 1585 1800 2200
H 2400 2400 2400
D 3152 2755 2755
Power supply 380V (three phase four wire + protective grounding wire)
Condensing method Air-cooled/water-cooled

For air-cooled models, performance specifications are based on an ambient temperature of +25 °C and relative humidity of ≤85% measured with the chamber empty. For water-cooled models, reference conditions are an ambient temperature between +15 °C and +35 °C, relative humidity of ≤85%, and cooling water temperature of ≤+28℃, also measured without test samples inside the chamber.

Start by thinking about the materials you need to test and the exact conditions you plan to recreate. Once you share those details with us, our team can suggest a test chamber that matches your testing process and performance targets.

Yes. To maintain stable operation, it’s important to use purified water with controlled levels of resistivity, conductivity, and total dissolved solids (TDS). This helps avoid mineral buildup and keeps humidity readings accurate.

Of course. If you need official verification, we can arrange calibration reports issued by certified third-party labs to confirm the test chamber’s performance.

Both cooling methods are effective, but your choice depends on your facility layout and utility connections. If you’re unsure which one fits your environment best, our specialists will walk you through the pros and cons of each option.
