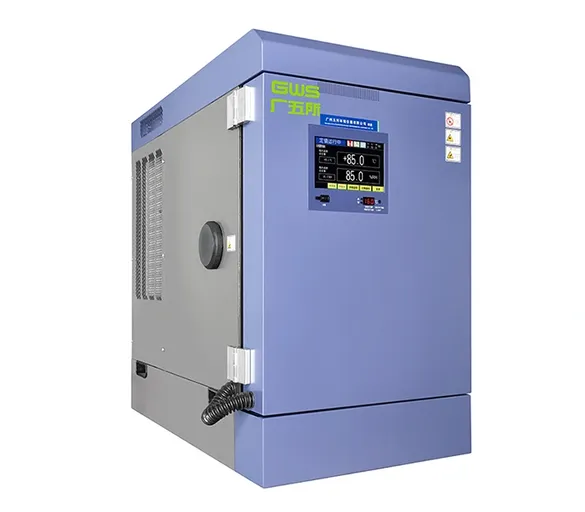

MINI Series High/Low Temperature & Humidity Test Chamber

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

MINI Series High/Low Temperature & Humidity Test Chamber
  • MINI Series High/Low Temperature & Humidity Test Chamber
  • MINI Series High/Low Temperature & Humidity Test Chamber

    • MINI Series High/Low Temperature & Humidity Test Chamber

    Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

    These compact benchtop chambers are designed for environments where space is limited but reliable climate testing is essential. They help evaluate how materials and components perform when exposed to controlled heat, cold, and humidity over time.

    Typical Test Applications
    • High-temperature exposure
    • Low-temperature assessments
    • Constant temperature and humidity testing
    • Alternating temperature cycles
    • Combined temperature and humidity simulations
    Our temperature and humidity test chamber models comply with the following standards:
    • EN IEC 61000-6-2:2019
    • EN IEC 61000-6-4:2019
    • EN 61010-1:2010+A1:2019
    • ASINZS 61000.6.4:2012
    Request a Quote
    Standard Configuration
    • Standard Configuration
      2 cable ports (Ø50 mm), one on each side, supplied with grey flexible rubber plugs and covers
    • Standard Configuration

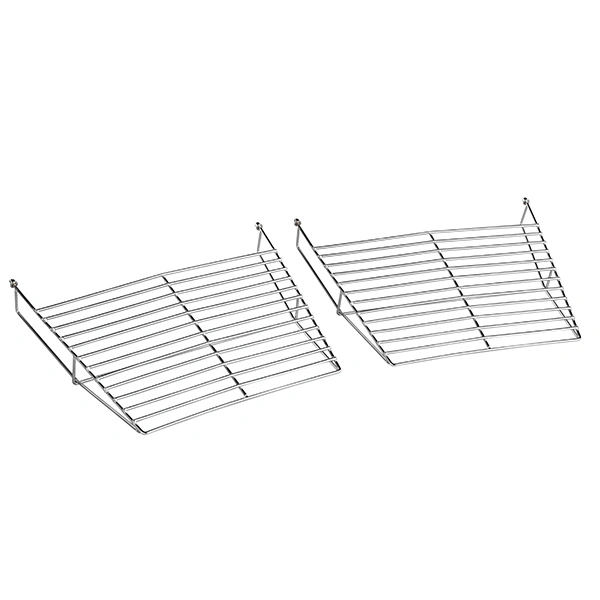

      2 sets of specimen racks
    • Standard Configuration
      1 sample power control terminal
      1 RS-485 communication port
      1 RJ-45 Ethernet port
    • Standard Configuration
      USB port
    • Standard Configuration
      Hour meter
    Technical Parameters
    Model MW3030 MT3065
    Chamber volume (L) 30
    Performance Temperature range -40℃～+150℃ -70℃～+150℃
    Humidity range (25～98)%RH/(20～85) ℃ ——
    Temperature fluctuation 1℃
    Temperature deviation ±2.0℃ (temperature≤100℃) ±3.0℃ (temperature>100℃)
    Humidity deviation ±3.0% RH(>75%RH);
    ±5.0% RH(≤75%RH)     		——
    Temperature rise rate -30℃→+150℃ -65℃→+150℃
    ≤35min ≤40min
    Temperature drop rate +20℃→-25℃ +20℃→-60℃
    ≤30min ≤50min
    Internal dimensions (mm) W300×H400×D250
    External dimensions (without protrusion) (mm) W500×H850×D875
    Power supply 220V (single phase + protective grounding wire)
    Condensing method Air-cooled

    Performance values are based on an ambient temperature of +25 °C and relative humidity up to 85%, measured with the chamber empty.

    Start by thinking about the materials you need to test and the exact conditions you plan to recreate. Once you share those details with us, our team can suggest a test chamber that matches your testing process and performance targets.

    Yes. To maintain stable operation, it’s important to use purified water with controlled levels of resistivity, conductivity, and total dissolved solids (TDS). This helps avoid mineral buildup and keeps humidity readings accurate.

    Of course. If you need official verification, we can arrange calibration reports issued by certified third-party labs to confirm the test chamber’s performance.

    Both cooling methods are effective, but your choice depends on your facility layout and utility connections. If you’re unsure which one fits your environment best, our specialists will walk you through the pros and cons of each option.
