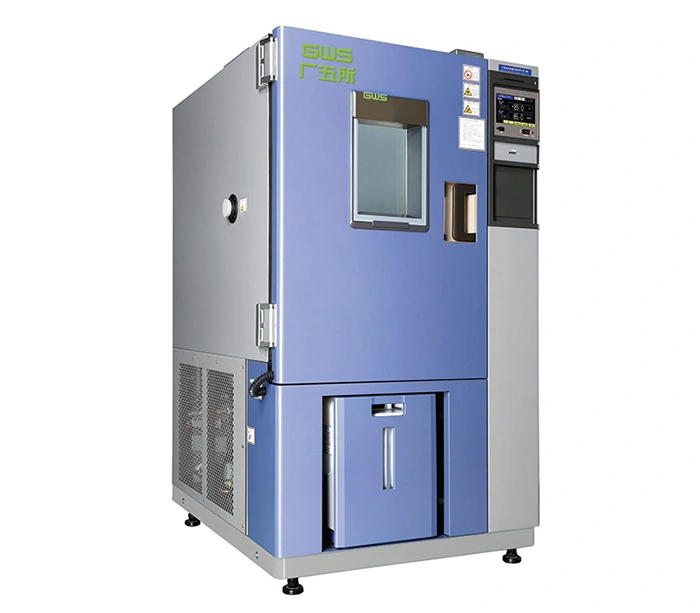

EJ Series High/Low Temperature & Humidity Test Chamber

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

EJ Series High/Low Temperature & Humidity Test Chamber

EJ Series High/Low Temperature & Humidity Test Chamber

Environmental simulation chamber for testing materials by simulating conditions at desired temperature and humidity levels

These chambers provide an economical option for simulating a variety of temperature and humidity conditions. They are suitable for high- and low-temperature tests, constant climate exposure, and alternating cycles to check how materials and components respond to changing environments.

Features
  • Quiet design with maximum noise levels of 60 dB(A) or less
  • Stable operation, low failure rates, and excellent cost-effectiveness
Our temperature and humidity test chamber models comply with the following standards:
  • EN IEC 61000-6-2:2019
  • EN IEC 61000-6-4:2019
  • EN 61010-1:2010+A1:2019
Request a Quote
  • Standard Configuration
    1 cable port (Ø100 mm) with grey flexible rubber stopper and cover
  • Standard Configuration

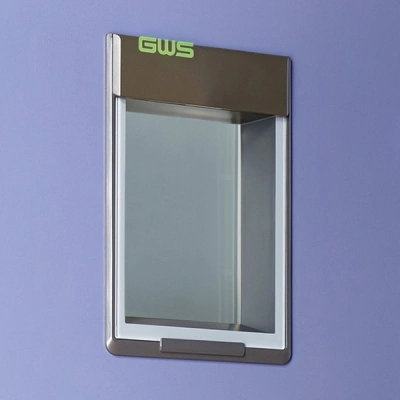

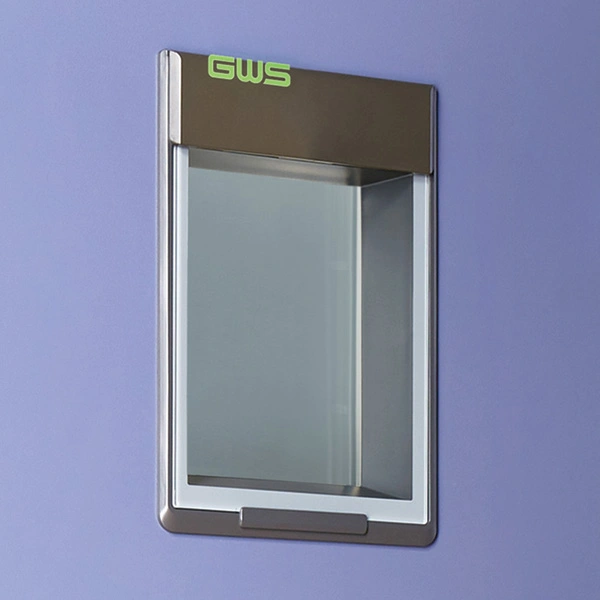

    1 observing window (insulating glass with transparent heating film)
  • Standard Configuration

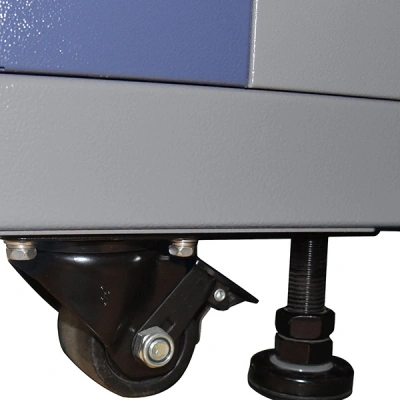

    4 caster wheels
    4 leveling feet
  • Standard Configuration

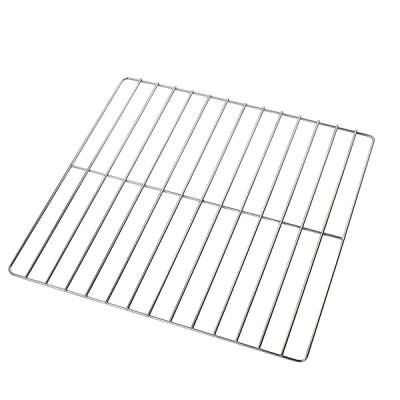

    2 sets of specimen racks
  • Standard Configuration
    1 sample power control terminal
    1 RS-485 communication port
    1 RJ-45 Ethernet port
  • Standard Configuration
    USB port

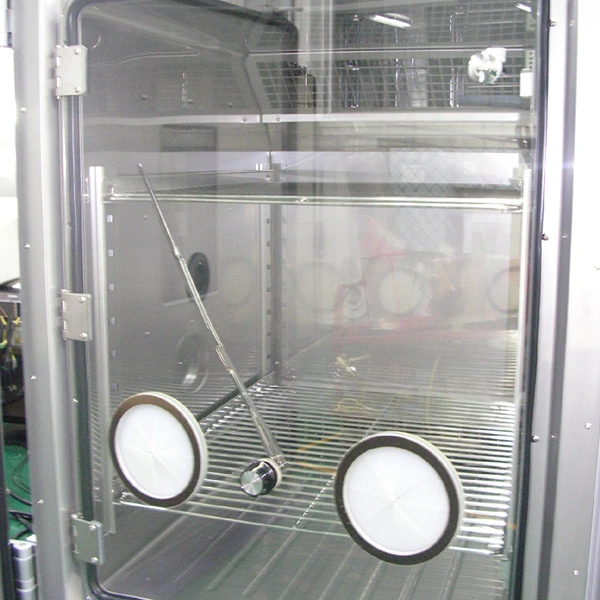

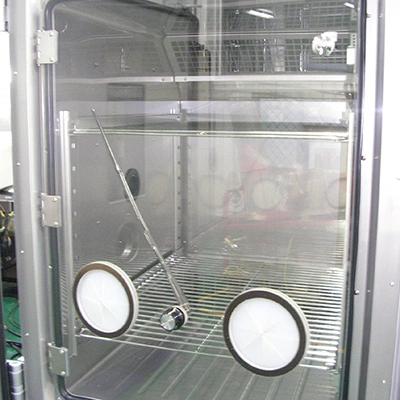

Glass door with integrated access ports
Technical Parameters
Model
ER/EL/ESL (with humidity control)
EM/EU/EG (without humidity control) 		ER/M-02J ER/M-04J ER/M-10J EL/U-01J EL/U-02J EL/U-04J EL/U-10J ESL/G-01J ESL/G-02J ESL/G-04J ESL/G-10J
Chamber volume (L) 200 400 1000 100 200 400 1000 100 200 400 1000
Performance Temperature range -20～+150℃ (180℃) -40～+150℃ (180℃) -70～+150℃ (180℃)
Humidity range (only models with humidity control) 25～98%RH/(20～85)℃
Temperature fluctuation ≤0.5℃
Temperature deviation ±2.0℃
Humidity deviation (only models with humidity control) ±3.0%RH
Temperature rise rate -20→+150℃ -40→+150℃ -70→+150℃
≤60min
Temperature drop rate +20→-20℃ +20→-40℃ +20→-70℃
≤30min ≤45min ≤60min ≤45min ≤60min ≤65min ≤80min ≤65min ≤70min
Internal dimensions (mm) W 500 600 1000 400 500 600 1000 400 500 600 1000
H 750 850 1000 500 750 850 1000 500 750 850 1000
D 600 800 100`0 500 600 800 1000 500 600 800 1000
External dimensions (without protrusion) (mm) W 910 1010 1410 810 910 1010 1410 810 910 1010 1410
H 1786 1886 2036 1536 1786 1886 2036 1536 1786 1886 2036
D 1173 1373 1588 1173 1173 1373 1588 1173 1173 1373 1588
Power supply 380V (three phase four wire + protective grounding wire)
Condensing method Air-cooled/water-cooled
(Models ending with “A” are configured as air-cooled,while those ending with “W” are water-cooled versions. For example,ER-02JA refers to an air-cooled chamber,and ER-02JW indicates a water-cooled chamber.)

For air-cooled models, performance specifications are based on an ambient temperature of +25 °C and relative humidity of ≤85% measured with the chamber empty. For water-cooled models, reference conditions are an ambient temperature between +15 °C and +35 °C, relative humidity of ≤85%, and cooling water temperature of ≤+28℃, also measured without test samples inside the chamber.

Start by thinking about the materials you need to test and the exact conditions you plan to recreate. Once you share those details with us, our team can suggest a test chamber that matches your testing process and performance targets.

Yes. To maintain stable operation, it’s important to use purified water with controlled levels of resistivity, conductivity, and total dissolved solids (TDS). This helps avoid mineral buildup and keeps humidity readings accurate.

Of course. If you need official verification, we can arrange calibration reports issued by certified third-party labs to confirm the test chamber’s performance.

Both cooling methods are effective, but your choice depends on your facility layout and utility connections. If you’re unsure which one fits your environment best, our specialists will walk you through the pros and cons of each option.
