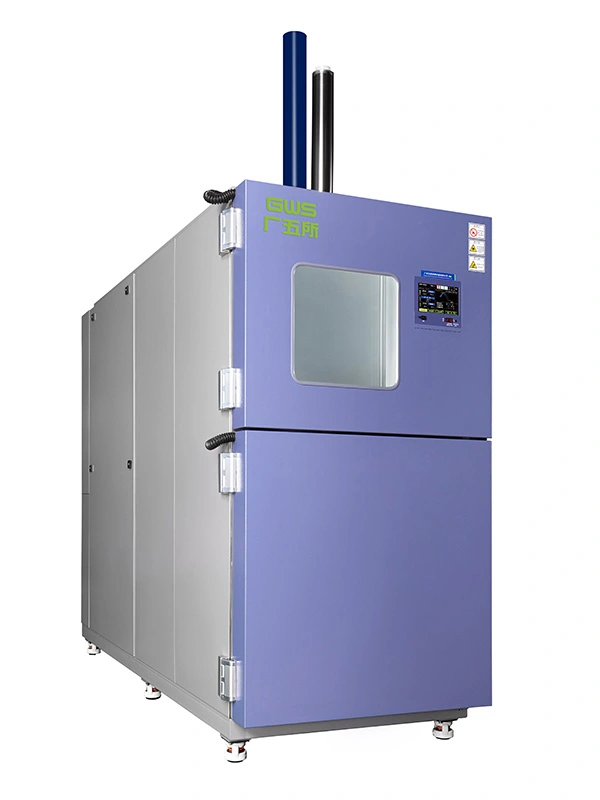

TS Series Two-Zone Thermal Shock Test Chamber

Environmental chamber for evaluating product reliability through rapid transitions between hot and cold temperature zones

TS Series Two-Zone Thermal Shock Test Chamber

TS Series Two-Zone Thermal Shock Test Chamber

Environmental chamber for evaluating product reliability through rapid transitions between hot and cold temperature zones

A two-zone thermal shock chamber transfers samples between separate hot and cold sections to create immediate temperature changes. This method is essential for uncovering hidden defects, validating product durability, and ensuring components can tolerate rapid thermal stress during use.

Common Test Applications
  • High-temperature exposure
  • Low-temperature performance evaluation
  • Controlled thermal cycling
  • Instant thermal shock testing
Our temperature and humidity test chamber models comply with the following standards:
  • EN IEC 61000-6-2:2019
  • EN IEC 61000-6-4:2019
  • EN 61010-1:2010+A1:2019
Request a Quote
Standard Configuration
  • Standard Configuration

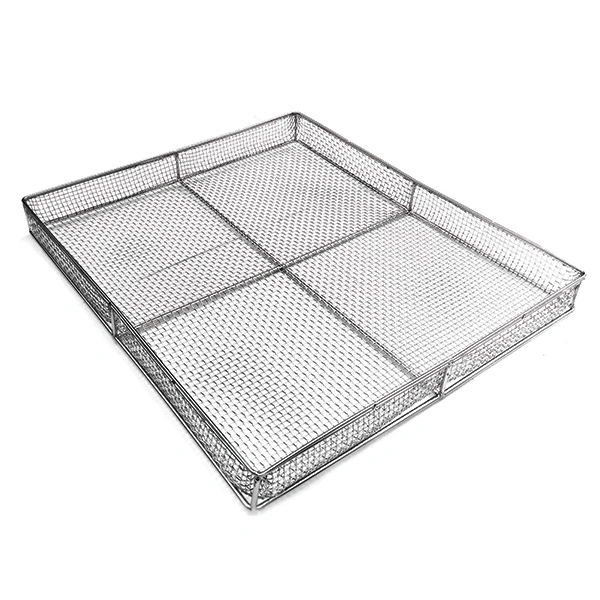

    Two sets of specimen baskets
  • Standard Configuration
    Hour meter
  • Standard Configuration

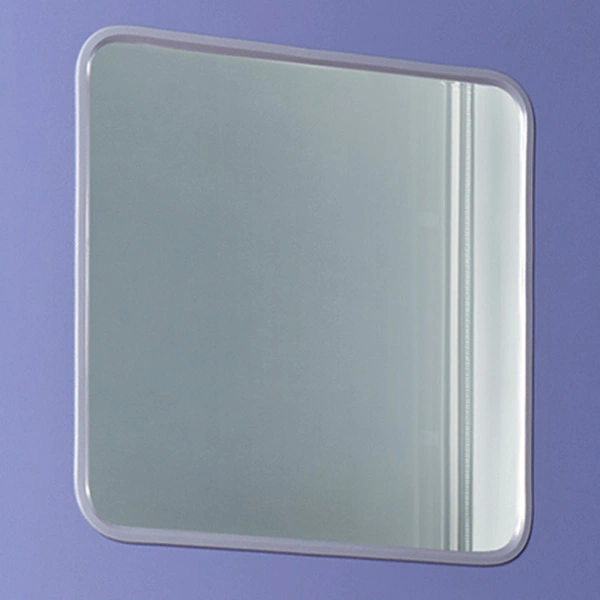

    1 observation window (insulating glass with transparent heating film)
  • Standard Configuration

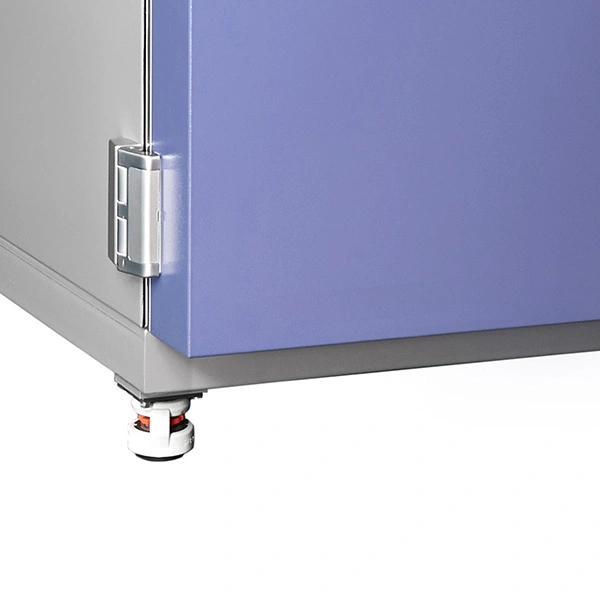

    6 caster wheels (including leveling feet)
  • Standard Configuration
    1 sample power control terminal
    1 RS-485 communication port
    1 RJ-45 Ethernet port
  • Standard Configuration
    USB port
Technical Parameters
Model TS-120SA TS-120SW TS-300SW
Chamber volume (L) Approx. 120 Approx. 300
Test system 2-zone,basket moving up and down driven by motor and screw
Performance High temperature zone Temperature range +60℃~+220℃
Temperature rise rate ≥10℃/min
Low temperature zone Temperature range -80℃~+70℃
Temperature rise rate ≥2℃/min ≥1.5℃/min
Temperature drop rate ≥4℃/min ≥5℃/min
Test area (basket) High-temperature exposure range +60℃~+200℃
Low-temperature exposure range -70℃~+70℃
Temperature fluctuation 1℃
Temperature deviation ±2℃ (≤150℃)，±3℃ (>150℃)
Temperature recovery performance Temperature recovery time ≤5min
Basket transfer time ≤10sec
Test requirements High temperature exposure:+150℃ 30min
Low temperature exposure:-55℃ 30min
Specimen weight:3kg (plastic mold IC in two sample baskets) 		High temperature exposure:+150℃ 30min
Low temperature exposure:-55℃ 30min
Specimen weight:10kg (plastic mold IC in two sample baskets)
Conditions Sensor position:Near the center of the test area. Cooling water temperature:+25°C (only for water-cooled models).
Power supply voltage:According to specified voltage requirements.
Internal dimensions (mm) W470×H410×D650 W470×H410×D650 W770×H610×D650
External dimensions (without protrusion) (mm) W1250×H2607×D2900 W1000×H2607×D2530 W1360×H3074×D3135
Rated power (kW) 16.5 15 35
Condensing method Air-cooled Water-cooled

For air-cooled models, the stated performance is based on ambient conditions of +25 °C with relative humidity ≤85%, measured with no test specimens inside the chamber. For water-cooled models, performance is based on ambient temperature between +15 °C and +35 °C, relative humidity ≤85%, and cooling water temperature ≤+28 °C, also measured without test specimens inside.

The main difference is in how the temperature changes are applied to the sample. Thermal shock chambers create an immediate and extreme transition from hot to cold without any gradual ramp. This sudden exposure helps reveal weaknesses that may not appear under slower transitions. In comparison, temperature and humidity chambers and rapid-rate thermal cycle chambers change the temperature at controlled rates over time, so there is always a transition period instead of an instant shift.

Three zone chambers are suitable for samples that are sensitive to vibration or require testing while powered, such as precision electronics or automotive components. They also handle frequent, continuous shock cycles more effectively. Two zone chambers are designed for small samples like chips or plastic parts that are less affected by vibration and where quick thermal shock testing is the priority.
