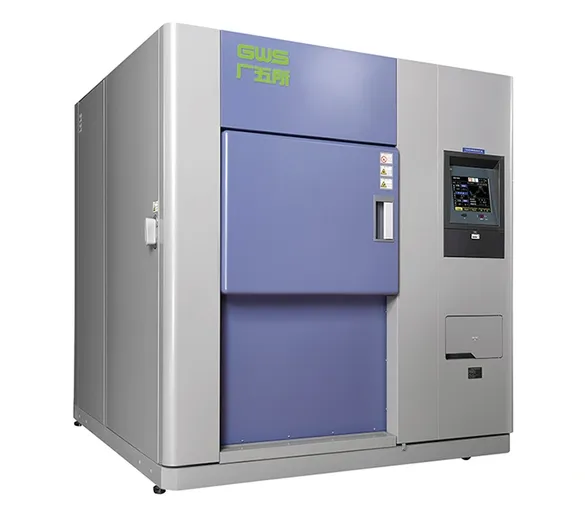

TSG Series Three-Zone Thermal Shock Test Chamber

Environmental chamber with hot, ambient and cold zones for product reliability testing by rapidly transferring extreme temperature changes

TS Series Three-Zone Thermal Shock Test Chamber
  • TS Series Three-Zone Thermal Shock Test Chamber
  • TS Series Three-Zone Thermal Shock Test Chamber
  • TS Series Three-Zone Thermal Shock Test Chamber
  • TS Series Three-Zone Thermal Shock Test Chamber

    • TSG Series Three-Zone Thermal Shock Test Chamber

    Environmental chamber with hot, ambient and cold zones for product reliability testing by rapidly transferring extreme temperature changes

    A three-zone thermal shock chamber uses separate hot, ambient, and cold sections to expose products to extreme temperature changes in seconds. Unlike designs where samples move between chambers, this thermal shock test system keeps the product fixed in place while air flows switch automatically, reducing vibration and ensuring more accurate measurements. The chamber can operate in both two-zone and three-zone modes, depending on the test requirements.

    Common Test Applications
    • High-temperature testing
    • Low-temperature testing
    • Controlled temperature cycling
    • Thermal shock testing
    Our temperature and humidity test chamber models comply with the following standards:
    • EN IEC 61000-6-2:2019
    • EN IEC 61000-6-4:2019
    • EN 61010-1:2010+A1:2019
    Request a Quote
    Standard Configuration
    • Standard Configuration

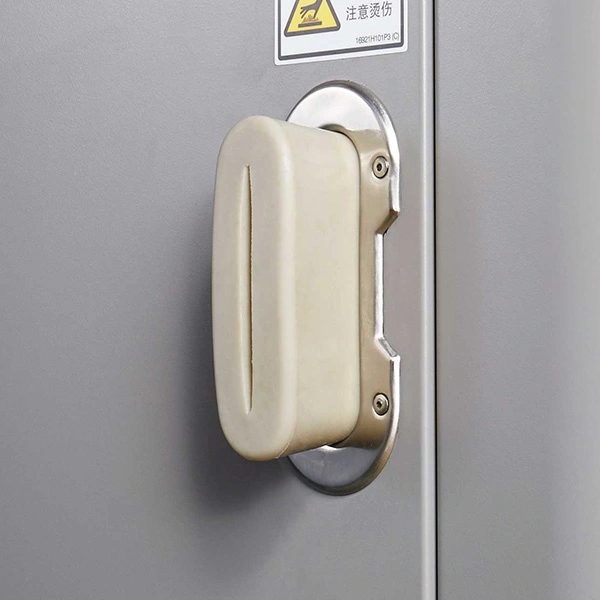

      1 oval cable port measuring 25×100 mm, with grey soft rubber plug and cover
    • Standard Configuration

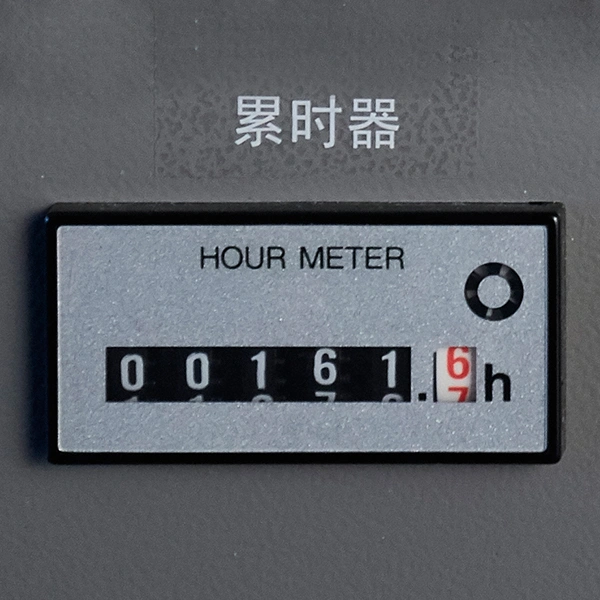

      Hour meter
    • Standard Configuration

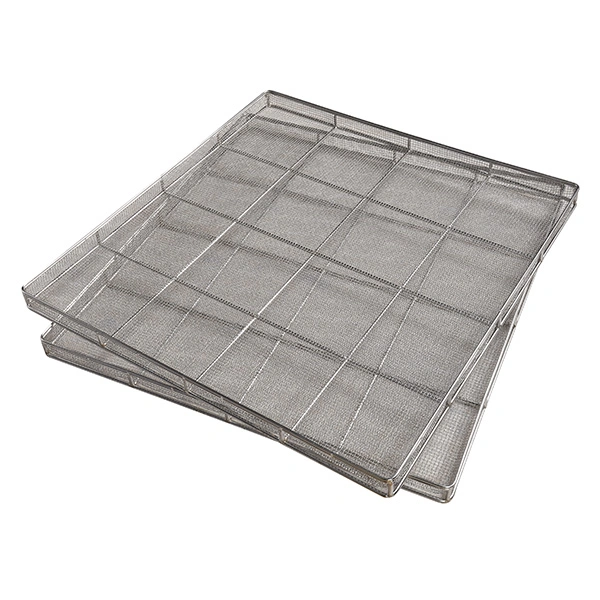

      2 sets of specimen baskets
    • Standard Configuration
      6 caster wheels

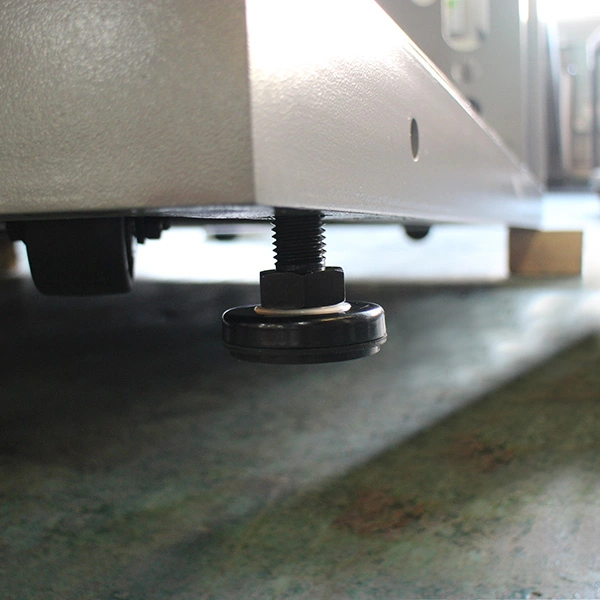

      4 leveling feet
    • Standard Configuration

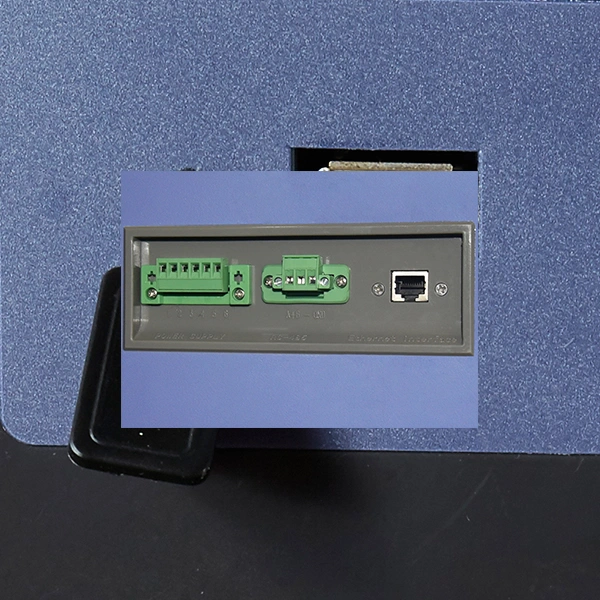

      1 sample power control terminal
      1 RS-485 communication port
      1 RJ-45 Ethernet port
    • Standard Configuration

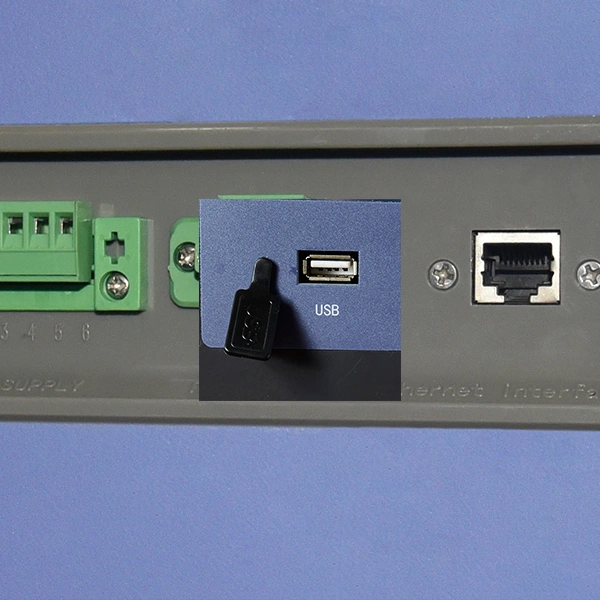

      USB port
    Features
    • The chamber uses a three-zone fixed design with pneumatic dampers that automatically switch airflow. This setup supports both two-zone and three-zone testing modes, depending on the required protocol.
    • Samples remain in a single position throughout the test cycle. By avoiding movement, the thermal shock test system reduces vibration and interference, resulting in more consistent and reliable data.
    • A large front door with pneumatic opening and closing makes it safer and easier to load or remove test items.
    Technical Parameters
    Model 55 Type 55s Type H Type S Type L Type
    TSG2055W TSG3055W TSG5055W TSG10055W TSG3055WS TSG5055WS TSG-71H-W TSG-71S-A/W TSG-101S-W TSG-201S-W TSG-71L-A TSG-101L-A
    Chamber volume (L) 200 300 500 970 300 500 70 70 100 200 70 100
    Test system 2-zone or 3-zone,pneumatic damper switching
    Performance High temperature zone Pre-heat upper limit +200℃
    Temperature rise rate +60℃→+200℃≤20min Ambient temperature→+200℃≤15min
    Low temperature zone Pre-cool lower limit -78℃ ﹣77℃ ﹣75℃
    Test area Temperature deviation ±2℃ ±2℃ (≤+150℃) ±3℃ (＞+150℃)
    Temperature exposure range High temperature:(+60~+150)℃ Low temperature:(-55~-10)℃ High temperature:(+60~+200)℃ Low temperature:(-70~0)℃ High temperature:(+60~+200)℃ Low temperature:(-65~-0)℃
    Temperature recovery time ≤5min ≤5min ≤5min ≤5min ≤10min ≤5min
    Specimen weight* 10kg 7.5kg 12.5kg 12.5kg 7.5kg 10kg 3.5kg 5kg 5kg 20kg 2.5kg 2.5kg
    Internal dimensions (mm) W 650 970 970 970 970 970 410 410 650 650 410 650
    H 460 460 780 1000 460 780 460 460 460 460 460 460
    D 670 670 670 1000 670 670 370 370 370 670 370 370
    External dimensions (without protrusion) (mm) W 1710 2030 2030 2030 2030 2030 1310 1310 1550 1550 1310 1550
    H 1935 1935 2256 2475 1935 2256 1950 1950 1950 1950 1950 1950
    D 1845 1845 1845 2090 1845 1845 1830 1530 1530 1830 1530 1530
    Rated power (kW) 39 39 50 55 50 55 43 35 35 49 26 26

    Performance data for air-cooled models are based on an ambient temperature of +25 °C and relative humidity up to 85%, measured with the chamber empty. For water-cooled models, performance is specified with ambient temperature between +15 °C and +35 °C, relative humidity ≤85%, and cooling water temperature ≤+28 °C, also measured without any samples inside.

    Test samples are plastic-encapsulated ICs evenly distributed in two sample baskets. For details about temperature recovery conditions, please contact your sales representative.

    The main difference is in how the temperature changes are applied to the sample. Thermal shock chambers create an immediate and extreme transition from hot to cold without any gradual ramp. This sudden exposure helps reveal weaknesses that may not appear under slower transitions. In comparison, temperature and humidity chambers and rapid-rate thermal cycle chambers change the temperature at controlled rates over time, so there is always a transition period instead of an instant shift.

    Three zone chambers are suitable for samples that are sensitive to vibration or require testing while powered, such as precision electronics or automotive components. They also handle frequent, continuous shock cycles more effectively. Two zone chambers are designed for small samples like chips or plastic parts that are less affected by vibration and where quick thermal shock testing is the priority.
